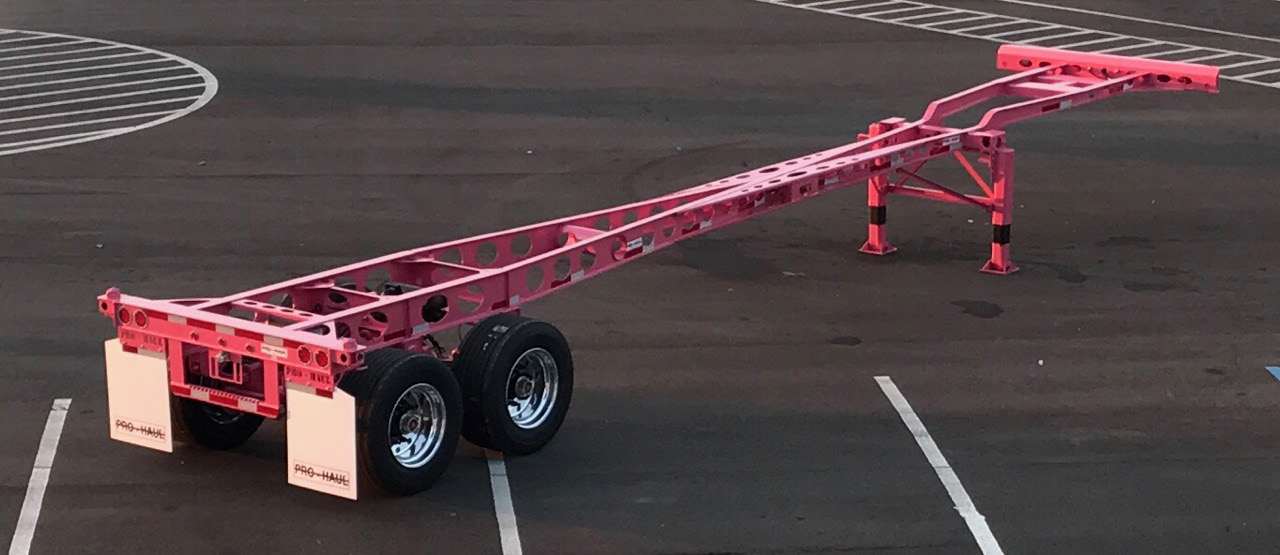

40' Tandem Lightweight Intermodal Chassis

40’ TANDEM LIGHTWEIGHT INTERMODAL CHASSIS

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal containers
  • Meets DOT requirements
  • Maximum Gross Weight: 65,000 LB
  • Tare Weight: 4,950 LB +/- 1%

GEOMETRY

  • Overall Length & Type: 40'9" Fixed, Gooseneck Frame
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 40”
  • Maximum Rear Height: Approximately 48”
  • King Pin Location: 30"

FRAME

  • Main Beam: High Tensile Strength X-Beam
  • FWD Beam Spec: High Tensile 3/8 Thick, 4” wide top and bottom flanges and High Tensile Web

RUNNING/SUSP

  • Axle Spacing: 49” Axle Spacing
  • Spring Spec: 3 Leaf - High Arch 354-00
  • Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
  • 5” Round 25,000 LB axle with oil bath lightweight hubs
  • Brake Chamber: 30/30 Standard Stroke*
  • Wheel: 10 Stud Hub Piloted Outboard Lightweight Iron Hub with lightweight steel brake drum

TIRES & WHEELS

  • Tire Size: 445/50R22.5*
  • Wheel: 14.00x22.5 Aluminum

LANDING GEAR

  • L/GEAR Shoes: 10” X 10” Sand Shoe Low Profile
  • Landing Gear: Jost A400.T1.17*
  • Crank Handle: Located at Driver’s Side

ELEC/AIR

  • All LED Lights
  • Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
  • Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet Mounting*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • Decals Standard: Factory Furnished

PAINT

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested

+ PRO-HAUL reserves the right to correct all errors and omissions or equivalent
