40ft Intermodal Chassis

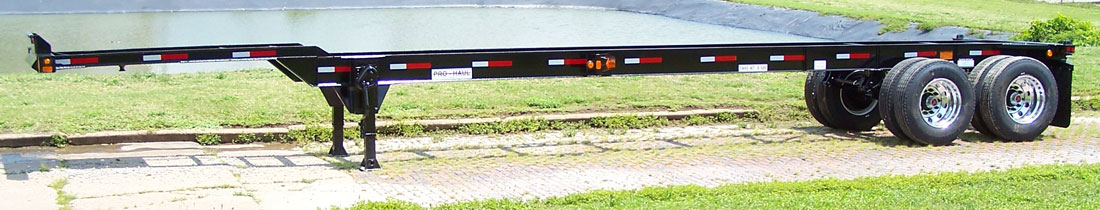

40’ PRO-HAUL TANDEM INTERMODAL CHASSIS

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal containers
  • Meets DOT requirements
  • Maximum Gross Weight: 65,000 LB
  • Standard US VIN Plate
  • Tare Weight: 6,500 LB

GEOMETRY

  • Overall Length & Type: 40' fixed, Gooseneck Frame
  • Frame Bogie Type: Fixed Tandem Bogie (2-Axle) with 25,000 LB axles
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 40”
  • Maximum Rear Height: Approximately 48"
  • King Pin Location: 30" from the rear face of the front bolster

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas Tire*
  • Tire Size: 11R22.5
  • Tire Inflation System: None
  • Wheel Size: 8.25 x 22.5
  • Hub Type: Hub piloted for disc wheels
  • Wheel Color: White

UPPER COUPLER

  • Pick-Up Plate: 5/16" thick pick-up plate with 2" diameter drain holes

LANDING GEAR

  • L/Gear Shoes: 10" x 10" sand shoe low profile
  • L/Gear Ground Clearance: Approximately 12" Ground Clearance
  • Landing Gear: Butler 50,000 LB lift/180,000 LB static with 2 speed gearbox* or Evolution 48,458 LB lift/138,765 LB static*
  • Crank Handle: Located at drivers side

FRAME

  • Main Beam: 12” Deep x 19 LB/ft main beam, A572GR50
  • Grade 50, 12" X 19 LB/ft. I-BEAM construction with frame ribs for increased strength
  • G/N Beam & Height: 5” deep fabricated H-Beam having 4 3/4" standard deep tunnel with standard 4 3/4" (120 mm) Gooseneck Height
  • G/N or FWD Beam Spec: 1/2” thick x 4" wide top and bottom flanges and 1/4" thick web A572GR50
  • Crossmember: Fabricated channel crossmember with triangle gusset, A572GR50
  • Crossmember Thickness: 3/16”
  • L/G Support Bracket: 1/4" channel type bracket with 4" channel brace
  • Front Gusset Spec: Front Gusset, 3/16" Triangular
  • Rear Gusset Spec: 3/16" with bending rib
  • Front Bolster Spec: 6” wide x 10” deep, open section. Tapered uprights for container guiding
  • Front Bolster Material: Channel 1/4” (A572GR50)
  • Front Bolster Locking Device: Locking Pin Type
  • Front Locking Spec: Locking Buffers 1103-1175 or Toca 900-905-00*
  • Rear Bolster Spec: 8” wide x 7 3/8” deep, 1/4" L Shape
  • Rear Bolster Channel Material: 1/4” (A572GR50)
  • Rear Bolster Top Plate Material: 1/2" (A572GR50)
  • Rear Bolster Locking Device: Non-retractable twistlocks, Butler 1101-1206*
  • License Plate Bracket: Standard Install Location
  • Mud flaps: 24"x36" white factory furnished mud flaps mounted on vertical steel flange with horizontal member
  • Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
  • Horizontal Member: 4” C-channel horizontal step guard

RUNNING/SUSP

  • Axle Spacing: 49” Axle Spacing
  • Axle ABS System: Tandem Axle with 2S/1M ABS System
  • Bogie & Axle Location: Equalizers located at 54” from rear face of rear bolster (2 Axle STD)
  • Suspension Spec: Hutchens Undermount Hanger, H-9700*
  • Spring Spec: 3 Leaf - High Arch 354-00
  • Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle - Tandem (2) Axle with 2S/1M or 2S/2M System
  • Axle-Track Length: 71 1/2”
  • Axle-Wall Thickness: 5/8"
  • Axle Spindle: Tapered Spindle
  • 5" Round 25,000 LB axle with oil bath hubs
  • Brake Lining: 16.5" x 7" Rockwell Q Plus Type shoes*
  • Brake Control System: 16 1/2" x 7" quick change brakes, 2S/1M Haldex ABS*
  • Air Tank: (2) 9.5x27 air tanks
  • Air Line: Black Gates Nylon DOT Tubing*
  • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5.5”, 28 Spline*
  • Brake Chamber: TGI 30/30 Standard Stroke*
  • Brake Chamber Stroke Length: Standard Stroke length
  • Brake Chamber Other Spec: Manufacturer's Standard Components
  • Wheel: 10 Stud Hub Piloted Outboard Iron Hub with 16 1/2" x 7" cast steel brake drum
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hub Cap: Stemco metal 340-4009 oil type hub cap*
  • Hubodometer: None
  • Slack Adjusters: Automatic
  • Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
  • Gladhand Location: Located at Center of Front Bolster (HT G/N STD)

ELEC/AIR

  • All LED LightsHarness-Chassis: Molded Phillips Harness*
  • 7-Way Connector without Circuit Breakers*
  • Front Marker Lights: Trucklite 3050A LED Rivet Mounting*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet Mounting*
  • Rear Lights: (3) Trucklite 3050 LED Rivet Mounting*
  • Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet Mounting*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960*
  • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT/OTHER

  • Metal Preparation: Commercial Shot Blast
  • Primer: Urethane Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise specified

OPTIONS

  • Steps: 36” Rear Step Up Platform (changes Tandem location from rear of chassis)
  • Axles: 102” Wide TP axles w/ Haldex Slack Adjusters
  • ABS: Wabco 1S/2M
  • Tires: 275/80R22.5 Michelin XTE
  • Landing Gear: A440.G8.19 Landing Gear
  • Accessories: Alum. Fenders (Front and Rear)

*or equivalent
