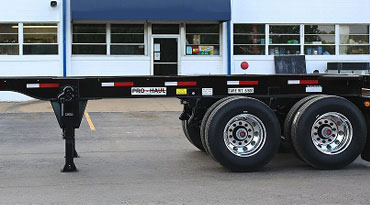

20ft Tandem Intermodal Chassis

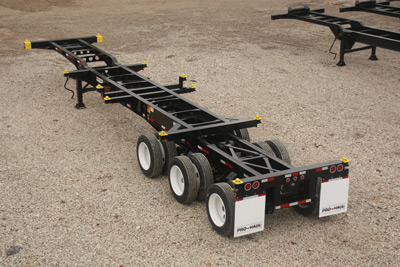

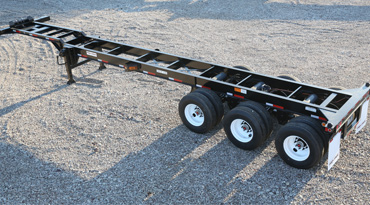

20-40’ 12 PIN TRI-AXLE INTERMODAL CHASSIS

FEATURES

  • All LED lights
  • Hutch 9700 series three leaf spring suspension, 24,000 LB GAWR*
  • 5” Round 25,000 LB axle with oil bath hubs
  • Two speed 50,000 LB lift capacity landing gear, 10 x 10 sand shoes
  • 16 1/2 x 7 quick change brakes, Haldex ABS brake system*
  • 30/30 brake chambers
  • GVWR: 65,000 LB at 20’, 77,000 LB at 40’
  • 24” Kingpin Setting
  • Main Beam fabricated with 130ksi flanges
  • Tare weight approximately 10,700 LB
  • Slider Mechanism: Air-operated locking pins lock in positions to hold 20’ or 40’ ISO Container

PRODUCT

  • New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal containers
  • Meets DOT requirements
  • Maximum Gross Weight: 65,000 LBS at 20', 77,000 LBS at 40'
  • Standard US VIN Plate
  • Tare Weight: 10,700 LBS

GEOMETRY

  • Overall Length & Type: 32'4" closed and 41'2" extended, Gooseneck Frame
  • Frame Bogie Type: Sliding Tri Axle Bogie (3-Axle) with 25,000 LBS axles
  • Overall Frame Width: 96" over Bolster
  • Main Frame Width: 40"
  • Maximum Rear Height: Approximately 48"
  • King Pin Location: 18" from the rear face of the front bolster

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas Tire*
  • Tire Size: 255/70R22.5
  • Tire Inflation System: None
  • Wheel Size: 8.25 x 22.5
  • Hub Type: Hub piloted for disc wheels
  • Wheel Color: White

UPPER COUPLER

  • Pick-Up Plate: 1/4" thick pick-up plate with 2" diameter drain holes

LANDING GEAR

  • L/Gear Shoes: 10" x 10" sand shoe low profile
  • L/Gear Ground Clearance: Approximately 12" Ground Clearance
  • Landing Gear: Butler 50,000 LB lift/180,000 LB static with 2 speed gearbox*
  • Crank Handle: Located at driver's side

FRAME

  • Main Beam: Fabricated with 130ksi flanges
  • G/N Beam & Height: 6 5/16” deep fabricated H-Beam having standard 4 7/8” (120mm) Gooseneck Height
  • Cross Member: Fabricated channel cross member with triangle gusset, A572GR50
  • Cross Member Thickness: 3/16” with 1/4” cross members at rollers
  • L/G Support Bracket: 5/16” box type bracket with 4” channel brace
  • Rear Gusset Spec: 3/16” with bending rib
  • Front Bolster Spec: 6 11/16” wide x 7 5/8” deep
  • Front Bolster Material: Channel 1/4” (A572GR50)
  • Front Bolster Locking Device: Twistlock and Locking Pin Type
  • Front Locking Spec: Non-retractable twistlocks and Pin-Lock
  • Rear Bolster Spec: 6 1/2” wide x 7 3/8” deep
  • Rear Bolster Channel Material: 1/4” (A572GR50)
  • Rear Bolster Top Plate Material: 3/8” (A572GR50)
  • Rear Bolster Locking Device: Non-retractable twistlock, Butler 1101-1206*
  • License Plate Bracket: Standard Install Location
  • Mud Flaps: 24”x30” white factory furnished mud fl aps mounted on vertical steel flange with horizontal member
  • Rear Under Ride Bumper: Weld on Vertical steel fl ange with horizontal member
  • Horizontal Member: 4” C-channel horizontal step guard

RUNNING/SUSP

  • Axle Spacing: 60” Axle Spacing
  • Axle ABS System: Tri Axle with 2S1M ABS System
  • Suspension Spec: Hutchens Undermount Hanger, H-9700*
  • Spring Spec: 3 Leaf - 365-00 Heavy Duty Spring
  • Hutch 9700 series three leaf spring suspension, 24,000 LB GAWR*
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle - Tri Axle (3) Axle with 2S1M
  • Axle-Track Length: 71 1/2”
  • Axle-Wall Thickness: 5/8”
  • Axle Spindle: Tapered Spindle
  • 5” Round 25,000 LB axle with oil bath hubs
  • Brake Lining: 16 1/2” x 7” Rockwell Q Type shoes*
  • Brake Control System: 16.5” x 7” quick change brakes, 2S/1M Haldex ABS*
  • Air Tank: (3) 9.5x27 air tanks
  • Air Line: Black Gates Nylon DOT tubing
  • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5 1/2”, 28 Spline*
  • Brake chamber: TGI 30/30 Standard Stroke*
  • Brake Chamber Stroke Length: Standard Stroke length
  • Brake Chamber Other Spec: Manufacturer’s Standard Components
  • Wheel: 10 Stud Hub Piloted Outboard Iron Hub with 16 1/2” x 7” cast steel brake drum
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hub Cap: Stemco metal 340-4009 oil type hubcap*
  • Hubodometer: None
  • Slack Adjusters: Automatic
  • Gladhands: Velvac Gladhands, Service 035042 Emergency 035045*
  • Gladhand Location: Located at Center of Front Bolster

ELEC/AIR

  • All LED Lights
  • Harness-Chassis: Molded Truck Lite 88 Series Harness*
  • 7-Way Connector Pollack 7-Way without Circuit Breakers*
  • Front Marker Lights: Trucklite 3050A LED Rivet Mounting*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet Mounting*
  • Rear Lights: (3) Trucklite 3050 LED Rivet Mounting*
  • Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet Mounting*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960*
  • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT/OTHER:

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested
