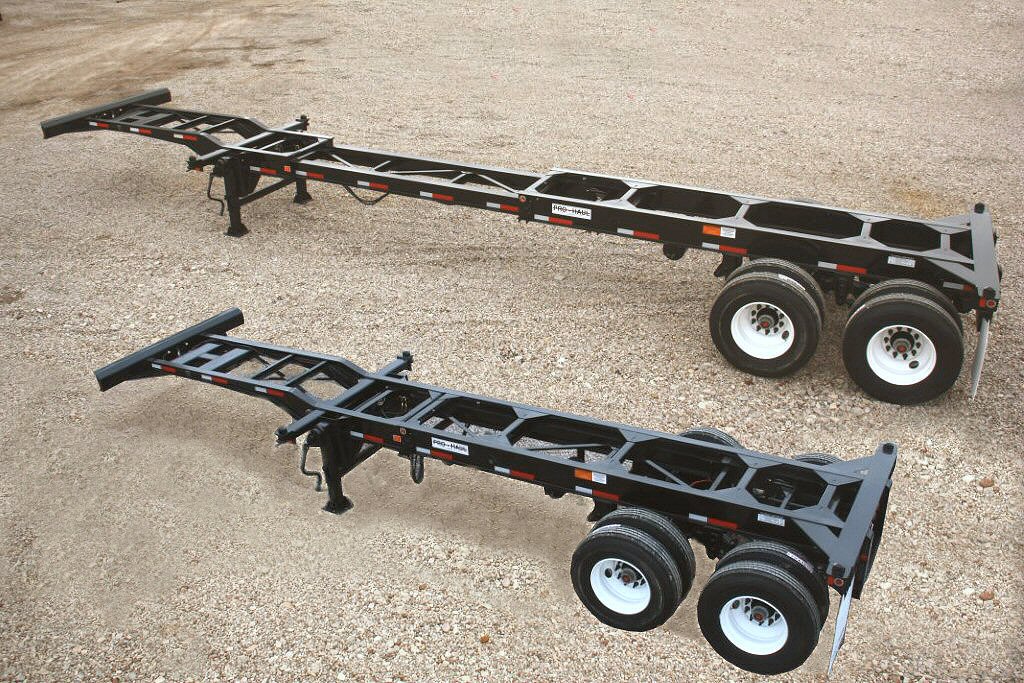

20'-40' 6-Pin Tandem Axle Intermodal Chassis

20-40’ 6 PIN TANDEM AXLE INTERMODAL CHASSIS

FEATURES

  • All LED Lights
  • Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
  • 5” Round 25,000 LB axle with oil bath hubs
  • Two speed 50,000 LB lift capacity landing gear, 10 x 10 sand shoes
  • 10 Hole Hub piloted wheels with 11R22.5 Tubeless Radial Tires
  • 16 1/2 x 7 quick change brakes, Haldex ABS Brake System*
  • 30/30 brake chambers
  • GVWR: 58,000 LB at 20’, 65,000 LB at 40’
  • 30” Kingpin Setting
  • Grade 50, 12” x 19 LB/ft. I-BEAM Construction
  • Tare weight approximately 7,500 LB
  • Slider mechanism: air-operated locking pins lock to hold 20’ or 40’ ISO Container

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal containers
  • Meets DOT requirements
  • Maximum Gross Weight: 58,000 LB at 20’, 65,000 LB at 40’
  • Standard US VIN Plate
  • Tare Weight: 7,500 LB

GEOMETRY

  • Overall Length & Type: 30’ closed and 40’10” extended, Gooseneck Frame
  • Slider Mechanism: Air-operated locking pins
  • Frame Bogie Type: Fixed Tandem Axle Bogie (2-Axle) with 25,000 LB axles
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 40”
  • Maximum Rear Height: Approximately 48”
  • King Pin Location: 24” from the rear face of the front bolster

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas Tire*
  • Tire Size: 11R22.5
  • Tire Infl ation System: None
  • Wheel Size: 8.25 x 22.5
  • Hub Type: Hub Piloted for disc wheels
  • Wheel Color: White

UPPER COUPLER

  • Pick-Up Plate: 5/16” thick pick-up plate with 2” diameter drain holes

LANDING GEAR

  • L/Gear Shoes: 10” x 10” sand shoe low profile
  • L/Gear Ground Clearance: Approximately 12” Ground Clearance
  • Landing Gear: Butler 50,000 LB lift/180,000 LB static with 2 speed gearbox*
  • Crank Handle: Located at Driver’s Side

FRAME

  • Main Beam (Rear): W12”x19 LB/ft I-Beam Gr. 50
  • Main Beam (Center): W8”x18 LB/ft I-Beam Gr. 50
  • G/N Beam & Height: Fabricated H-Beam, standard 4 7/8” (120 mm) Gooseneck Height
  • Cross Member: Fabricated channel cross member with triangle gusset, A572GR50
  • Cross Member Thickness: 3/16” with 1/4” cross members in rear
  • L/G Support Bracket: 1/4” box type bracket with 4” channel brace
  • Rear Bolster Gusset Spec: 3/16” with bending rib
  • Front Bolster Spec: 6” wide x 9 1/8” deep. Tapered Bolster for container guiding.
  • Front Bolster Material: Channel 1/4” (A572GR50)
  • Front Bolster Locking Device: Locking Pin Type
  • Front Locking Spec: Pin-Lock
  • Rear Bolster Spec: 8” wide x 7 1/4” deep
  • Rear Bolster Channel Material: 1/4” (A572GR50)
  • Rear Bolster Top Plate Material: 3/8” (A572GR50)
  • Rear Bolster Locking Device: Non-retractable twistlocks, Butler 1101-1206*
  • License Plate Bracket: Standard Install Location
  • Mud flaps: 24”x30” white factory furnished mud flaps mounted on vertical steel flange with horizontal member
  • Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
  • Horizontal Member: 4” Tube horizontal step guard

RUNNING/SUSP

  • Axle Spacing: 49” Axle Spacing
  • Axle ABS System: Tandem Axle with 2S1M ABS System
  • Suspension Spec: Hutchens Undermount Hanger, H-9700*
  • Spring Spec: 3 Leaf - 354-00 Heavy Duty Spring
  • Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle - Tandem Axle (2) Axle with 2S1M
  • Axle-Track Length: 71 1/2”
  • Axle-Wall Thickness: 5/8”
  • Axle Spindle: Tapered Spindle
  • 5” Round 25,000 LB axle with oil bath hubs
  • Brake Lining: 16 1/2” x 7” Rockwell Q Type shoes*
  • Brake Control System: 16 1/2” x 7” quick change brakes, 2S/1M Haldex ABS*
  • Air Tank: (2) 9.5x27 air tanks
  • Air Line: Black Gates Nylon DOT Tubing
  • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5 1/2”, 28 Spline*
  • Brake Chamber: TGI 30/30 Standard Stroke*
  • Brake Chamber Stroke Length: Standard Stroke Length
  • Brake Chamber Other Spec: Manufacturer’s Standard Components
  • Wheel: 10 Stud Hub Piloted Outboard Iron Hub with 16 1/2” x 7” cast steel brake drum
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hub Cap: Stemco metal 340-4009 oil type hub cap*
  • Hubodometer: None
  • Slack Adjusters: Automatic
  • Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
  • Gladhand Location : Located at Center of Front Bolster

ELEC/AIR

  • All LED Lights
  • Harness-Chassis: Molded Truck Lite 88 Series Harness*
  • 7-Way Connector Pollack 7-Way without Circuit Breakers*
  • Front Marker Lights: Trucklite 3050A LED Rivet Mounting*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet Mounting*
  • Rear Lights: (3) Trucklite 3050 LED Rivet Mounting*
  • Rear Stop/Turn/Tail lIghts: Trucklite 4050 LED Rivet Mounting*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960*
  • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation
  • 20’-40’ mechanism activated by electric switch

PAINT/OTHER:

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested

*or equivalent
