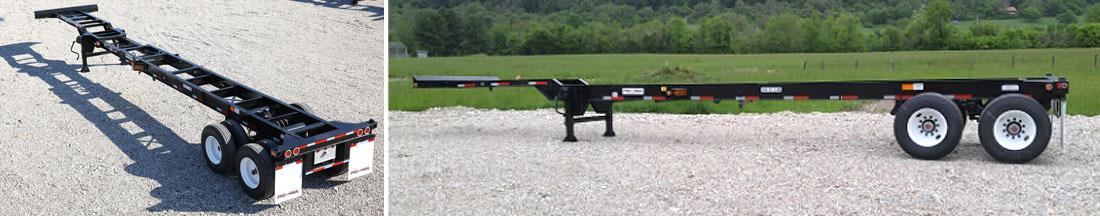

40’-45’ PRO-HAUL TANDEM INTERMODAL CHASSIS

FEATURES

  • Gooseneck frame
  • All LED Lights
  • Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
  • 5” Round 25,000 LB axle with oil bath hubs
  • Two speed 50,000 LB lift capacity landing gear, 10 x 10 sand shoes
  • 10 Hole Hub piloted wheels with 11R22.5 Tubeless Radial Tires
  • 16-1/2 x 7 quick change brakes, Haldex ABS brake system*
  • 30/30 brake chambers
  • GVWR 65,000 LB
  • 36” Kingpin Setting
  • Grade 50, 12” x 19 LB/ft. I-BEAM construction
  • Tare weight approx. 6,800 LB
  • Slide pins lock in positions to hold 40’ or 45’ ISO container

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal cargo containers
  • Meets DOT, AAR, ANSI, TOFC, FMVSS, ISO, SAE and TTMA requirements in effect at the time of manufacture in USA
  • Maximum Gross Weight: 65,000 LB • VIN Plate for Chassis: Standard US VIN Plate
  • Tare Weight: 6,800 LB

GEOMETRY

  • Overall Length & Type: 40’9” Closed and 45’9” Extended, Gooseneck Frame
  • Frame Bogie Type: With Fixed Tandem Bogie (2-Axle) 25,000 LB Axles
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 40”
  • Rear Height: Approximately 48” from ground to the top of the rear bolster in unladen condition
  • King Pin Location: 30” from the rear face of the front bolster
  • Landing Gear Location: 128” from the rear of the front bolster

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas*
  • Tire Size: 11R22.5
  • Wheels: Factory Furnished
  • Wheel Material: 8 Steel Wheel
  • Wheel Manufacturer: Butler*
  • Wheel Size: 8.25 x 22.5
  • Wheel Color: White
  • Valve Stem & Metal Dome Cap

UPPER COUPLER

  • Pick-Up Plate: 5/16” thick pick-up plate with 2” diameter drain holes
  • King Pin Trans-Support: 5/16” (6.4mm) thick fabricated channel king pin Trans-support
  • King Pin: Standard (Buyers Product) King Pin*

LANDING GEAR

  • L/GEAR Shoes: 10” X 10” Sand Shoe Low Profile
  • L/Gear Ground Clearance: Approximately 12” Ground Clearance
  • Landing Gear: Butler 50,000LB lift/180,000LB Static with 2 Speed Gearbox*
  • Crank Handle: Located at Driver’s Side

FRAME

  • Main Beam: 12” Deep x 19 LB/ft main beam, A572GR50
  • G/N Beam & Height: 5” deep fabricated H-beam having 4-5/8” standard deep tunnel with Standard 4-5/8” (120 mm) Gooseneck Height
  • G/N or FWD Beam Spec: 1/2” thick x 4” wide top and bottom flanges and 1/4” thick web, A572GR50
  • Cross Member: Fabricated channel cross member with triangle gusset, A572GR50
  • Cross member Thickness: 3/16”
  • L/G Support Bracket: 1/4” channel type bracket with 4” channel brace
  • Front Gusset Spec: Front Gusset, 3/16” Triangular
  • Rear Gusset Spec: Rear Gusset with bending rib, 3/16” thick Triangular
  • Front Bolster Spec: 8” wide x 10” deep, open section. Tapered bolster to provide container guiding operation
  • Front Bolster Material: 1/4” thick (A572GR50)
  • Front Bolster Locking Device: Locking Pin Type
  • Front Locking Spec: Locking Buffers 1103-1175 or Toca 900-905-00* • Rear Bolster Spec: 8” wide x 7-3/8” deep, 3/8” L Shape
  • Rear Bolster Channel Material: 3/8” (A572GR50)
  • Rear Bolster Top Plate Material: 1/2” (A572GR50)
  • Rear Bolster Locking Device: Non-retractable twistlocks, Butler 1101-1206*
  • License Plate Bracket Install: Standard Install Location
  • Mudfl aps: 24” x 36” white factory furnished mudfl aps mounted on Vertical steel flange with horizontal member
  • Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
  • Horizontal Member: 4” C-channel horizontal step guard
  • Bumper Spec: Bumperless Type. Vertical flange shall be directly extended from rear bolster
  • Extendable Frame Section: Fabricated 7.5” I-beam, 1/2”x5” Flanges A572, 1/4”Web A572
  • Extendable Frame Cross Members: 3/16” Cross Members 3/16” Triangular Gusset

RUNNING/SUSP

  • Axle Spacing: 49” Axle Spacing
  • Axle ABS System: Tandem Axle with 2S1M ABS System
  • Bogie & Axle Location: Location to be Fixed at 55” from the rear face of rear bolster
  • Susp. Spec: Hutchens Undermount Hanger, H-9700*
  • Spring Spec: 3 Leaf- High Arch 354-00
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle- Tandem (2) Axle with 2S1M
  • Axle-Track Length: 71-1/2”
  • Axle-Wall Thickness: 5/8”
  • Axle Spindle: Tapered Spindle
  • Brake Lining: 16.5” x 7” Rockwell Q Type shoes*
  • Brake Control System: 2S/1M Haldex ABS*
  • Air Tank: (2) 9-1/2x27 air tanks
  • Air Line: Black Gates Nylon DOT Tubing
  • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5.5”, 28 Spline*
  • Brake Chamber: TGI 30/30 Standard Stroke*
  • Brake Chamber Stroke Length: Standard Stroke Length
  • Brake Chamber Other Spec: Manufacturer’s Standard Components
  • 10 Stud Hub Piloted Outboard Iron Hub with 16-1/2” x 7” cast steel brake drum
  • Bearing Specification: Set 413 HM212011 & HM212049 Cone/Cup Set 414 HM218210 & HM218248 Cone/Cup
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hub Cap: Stemco metal 340-4009 oil type hub cap*
  • Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
  • Gladhand Location: Located at Center of Front Bolster

ELEC/AIR

  • Harness-Chassis: Molded Truck Lite 88 Series Harness with junction box*
  • 7-Way Connector Pollack 7-Way without Circuit Breakers
  • Front Marker Lights: Trucklite 10275Y LED Rivet Mounted*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn With TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet Mounting*
  • Rear Lights: (3) Trucklite 3050 LED Rivet Mounting*
  • Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet Mounting*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960* • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested
