Widespread Axle 43' Sand Chassis

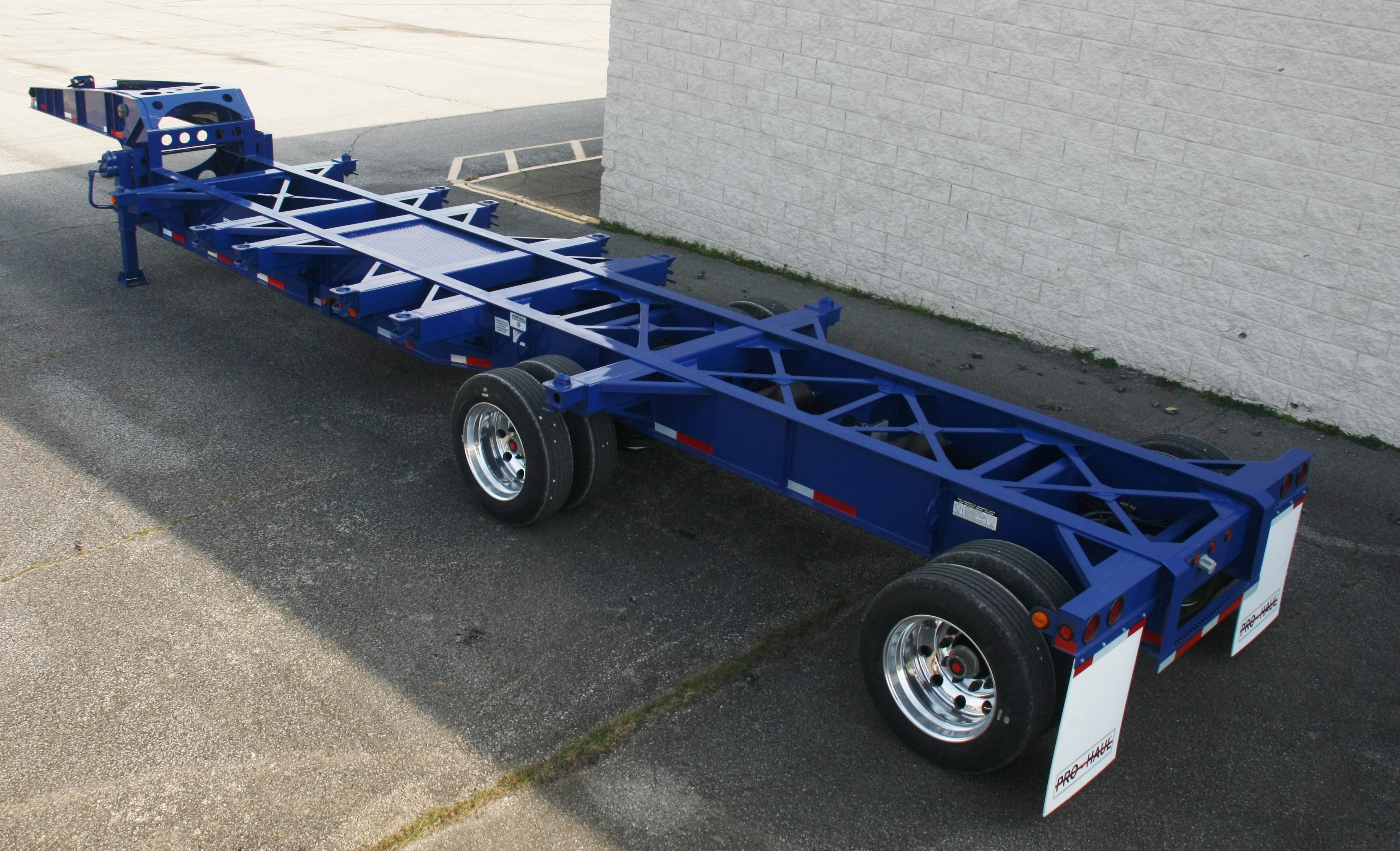

43' FRAC SAND CHASSIS

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of frac sand and ISO 20' Tanks
  • Ability to haul 2- 8' Sand Bins or 1- 10' Sand Bin or 1- 20' ISO Container/Tank
  • Meets DOT requirements
  • GVWR: 65,000 LB
  • Standard US VIN Plate
  • Tare Weight: 9,925 (All Aluminum Wheels)

GEOMETRY

  • Overall Length & Type: 43'
  • Frame Bogie Type: Widespread Axle Bogie (2-Axle) with 25,000 LBS axles
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 43”
  • Maximum Rear Height: 41 1/2”
  • King Pin Location: 18" from front of chassis
  • Cross member: Fabricated channel cross member with triangle gusset, A572GR50
  • Cross member Thickness: 3/16”
  • L/G Support Bracket: 1/4" box type bracket
  • Rear Gusset Spec: 3/16"
  • Bolster Spec: 7" Height X 7" Deep
  • Bolster Material: 3/16” x 7" Square Tubing (A572GR50)
  • Bolster Locking Device: Twistlock
  • License Plate Bracket: Standard Install Location
  • Mud flaps: 24"x30" white factory furnished mud flaps mounted on vertical steel flange with horizontal member
  • Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
  • Horizontal Member: 4” C-channel horizontal step guard

RUNNING/SUSP

  • Axle Spacing: 10'2” Axle Spacing
  • Axle ABS System: Widespread Axle with 2S1M ABS System
  • Suspension Spec: Ridewell RAR 240 25K
  • Spring Spec: Goodyear or Firestone air springs
  • Axle Supplier: Butler*
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle - Widespread Axle (2) Axle w/ 2S1M
  • Axle-Track Length: 71 1/2"
  • Axle-Wall Thickness: 5/8"
  • Axle Spindle: Tapered Spindle 5"
  • 5" Round 25,000 LB axle with oil bath hubs
  • Brake Lining: 16 1/2" x 7" Rockwell Q Type shoes*
  • Brake Control System: 16 1/2" x 7" quick change brakes, 2S/1M Haldex ABS*
  • Air Tank: (2) 9 1/2"x27" air tanks
  • Air Line: Black Gates Nylon DOT Tubing
  • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5 1/2", 28 Spline*
  • Brake Chamber: TGI 30/30 Standard Stroke*
  • Brake Chamber Stroke Length: Standard Stroke length
  • Brake Chamber Other Spec: Manufacturer's Standard Components
  • Wheel: 10 Stud Hub Piloted Outboard Iron Hub with 16 1/2" x 7" cast steel brake drum
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hub Cap: Stemco metal 340-4009 oil type hub cap*
  • Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
  • Gladhand Location: Located on mount plate at front of chassis

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas Tire*
  • Tire Size: 255/70R22.5
  • Tire Inflation System: None
  • Wheel Size: 8.25 x 22.5
  • Hub Type: Hub piloted for disc wheels
  • Wheel Color: Aluminum

UPPER COUPLER

  • Pick-Up Plate: 5/16" thick pick-up plate with 2" diameter drain holes

LANDING GEAR

  • L/Gear Shoes: 10" x 10" sand shoe low profile
  • L/Gear Ground Clearance: Approximately 12" Ground Clearance
  • Landing Gear: Butler 50,000 LB lift/180,000 LB static with 2 speed gearbox*
  • Crank Handle: Located at drivers side

ELEC/AIR

  • All LED Lights
  • Harness-Chassis: Molded Truck Lite 88 Series Harness*
  • 7-Way Connector Pollack 7-Way without Circuit Breakers*
  • Front Marker Lights: Trucklite 3050A LED Rivet or Grommet Mounting, depending on inventory*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet or Grommet Mounted (depending on inventory)/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet or Grommet Mounting, depending on inventory*
  • Rear Lights: (3) Trucklite 3050 LED Rivet or Grommet Mounting, depending on inventory*
  • Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet or Grommet Mounting, depending on inventory*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960*
  • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested

+ PRO-HAUL reserves the right to correct all errors and omissions or equivalent
